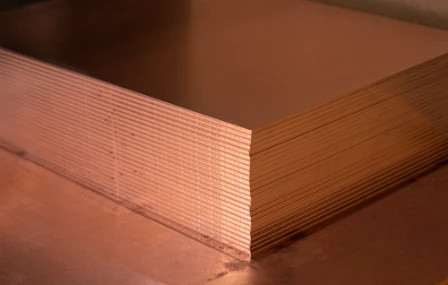

Cold rolled plates

Cold rolled plates are used in various electrical and electronics industry applications. Aurubis Finland Oy offers a wide range of different alloys, dimensions and surface qualities with strength and hardness values conforming to international standards. The products can also be tailor-made according to the customer’s specifications.

Form	Dimensions
Plate 0.3–1.6 mm	Thickness	0.3–1.6 mm
	Width	350–1100 mm
	Length	500–6000 mm
Plate 1.6–6 mm	Thickness	1.6–6 mm
	Width	300–1100 mm
	Length	800–4100 mm
Plate 6–12 mm (Cut edge)	Thickness	6–12 mm
	Width	100–1100 mm
	Length	≤ 3100 mm
	Pallet weight	≤ 450 kg
Plate 6–50 mm (Sawn edge)	Thickness	6–50 mm
	Width	100–1100 mm
	Length	500–10500 mm
	Pallet weight	≤ 2000 kg

Pure copper alloys and low-alloyed copper

ISO	UNS	EN	JIS	Density g/cm3	Electrical conductivity % IACS	Thermal conductivity W/(m°K)
Cu-OFE (OF-Cu)	C10100	CW009A	C1011	8.9	101	391
Cu-OF	C10200	CW008A	C1020	8.9	100	391
Cu-HCP (SE- Cu 57)		CW021A		8.9	98.3	386
Cu-XLP / Cu-PHC (SE- Cu 58)	C10300	CW020A		8.9	100	386
CuAg0.04 (OF)	C10400	CW017A		8.9	100	391
CuAg0.045 (OF)				8.9	100	388
CuAg0.10P	C10300+Ag	CW016A		8.9	100	388
CuAg0.10	C11600	CW013A		8.9	100	388
CuAg0.10 (OF)	C10700	CW019A		8.9	100	388
Cu-ETP (E-Cu)	C11000	CW004A	C1100	8.9	100	386
Cu-DLP	C12000	CW023A	C1201	8.9	90	386
Cu-DHP (SF-Cu)	C12200	CW024A	C1221	8.9	74	339
CuSn0.04				8.9	89	360
CuSn0.09				8.9	85	335
CuSn0.15	C14415	CW117C		8.9	83	328
CuCrZr (LCZ1)**	C18150**			8.9	80	324
CuAgMg (C155)**	C15500**			8.9	90	346

** deviates from standard
